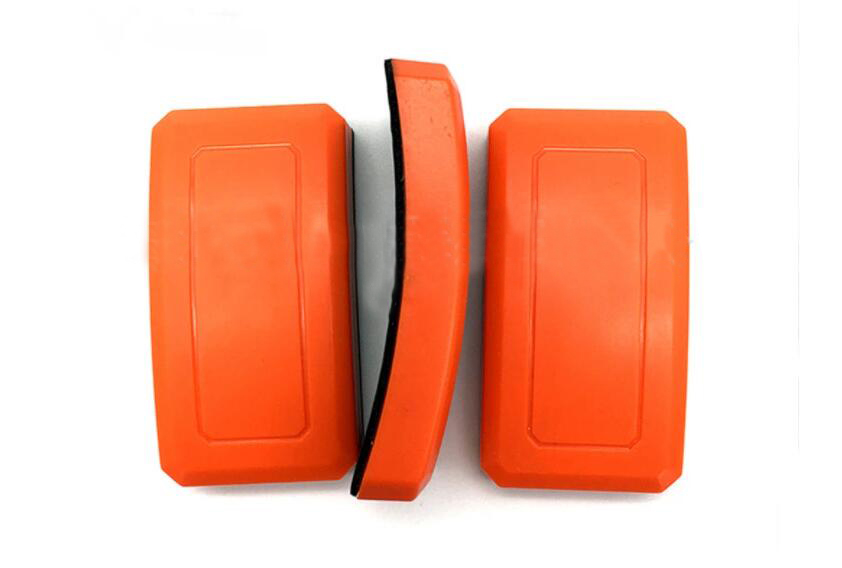

RFID Gas cylinder label
RFID Gas cylinder label
  RFID Gas cylinder label can effectively solve the car cylinder exists in the regulatory investigation document, difficult law enforcement supervision, difficult to handle the filling and gas cylinder testing, effectively solved the traditional regulator
  RFID Gas cylinder label can effectively solve the car cylinder exists in the regulatory investigation document, difficult law enforcement supervision, difficult to handle the filling and gas cylinder testing, effectively solved the traditional regulator


  RFID Gas cylinder label can effectively solve the car cylinder exists in the regulatory investigation document, difficult law enforcement supervision, difficult to handle the filling and gas cylinder testing, effectively solved the traditional regulatory power is insufficient, people have different regulatory standards, unqualified violations cylinder filling problem, maximum eliminates the automobile cylinder safe hidden trouble, to effectively prevent the safety accidents. Applying RFID gas cylinder  tag to gas cylinder safety supervision can not only improve the supervision level of gas cylinder safety, but also facilitate the construction of gas cylinder safety traceability system.


Technical parameters of RFID Gas cylinder label:

Working frequency

13.56MHz or 860-960MHz

Protocol

ISO14443A, ISO15693 or ISO/IEC 18000-6C EPC Class1 Gen2

Size

62*32*8mm,Radius of lower arch  R220CM or be customized

Materials

ABS+ Foams gluing


Antenna process mode

Aluminum etching

Crafts

Printing, code print and writing data

Chip model options

I CODE SLIX、FM1108、impinjM4D/M4E/M4QT/M5

Storage capacity

Depends on the chip model

Working mode

Can be read and written

Date storage time

>10 years

Erasable time

1000000 times

Read-write distance

0-5cm, 0-10m (depends on the read distance of working environment and the reader)

Working temperature

-25℃~+55℃

Storage temperature

-35℃~+75℃

Color

unlimited

Level of protection

IP66

Memory capacity

4k~128Kbits

Way to install

3M glue

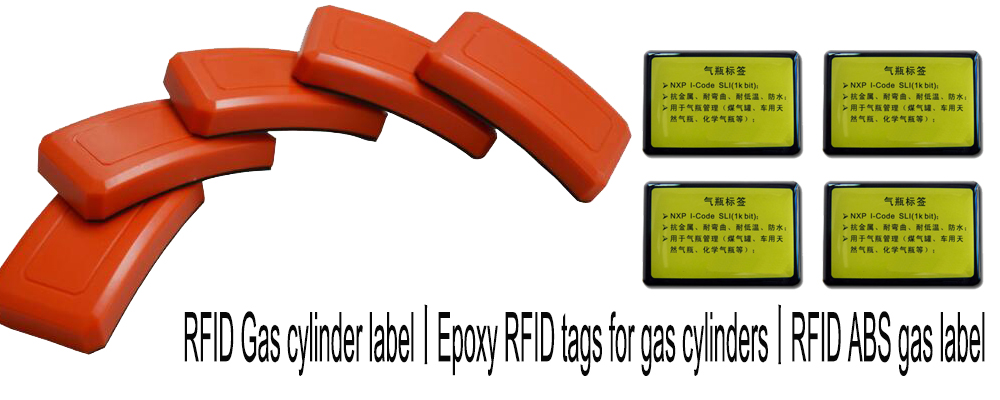

Epoxy RFID tags for gas cylinders

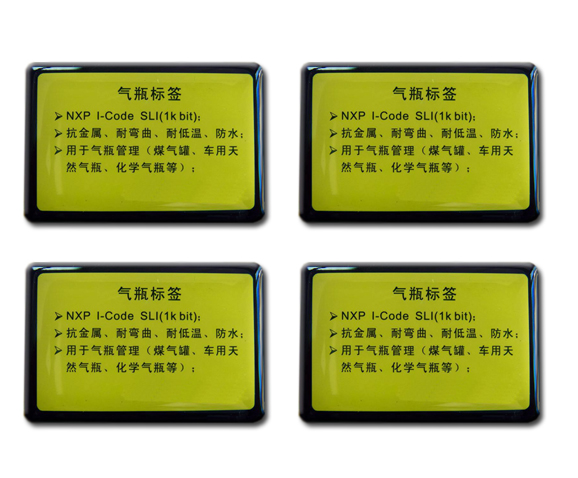

RFID ABS gas label
